Inside Chicago’s 900-Foot Residential Tower Development

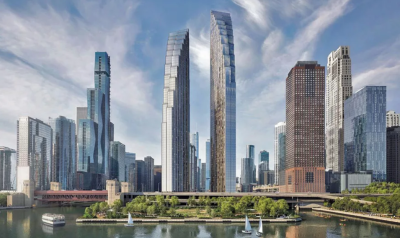

Chicago’s skyline is being reshaped with the construction of 400 Lake Shore Drive, a twin-tower residential development rising on the former site of the cancelled Chicago Spire project. The two residential towers, each expected to stand nearly 900 feet tall, are designed to address a major challenge in high-rise construction: wind performance.

Located at the meeting point of the Chicago River and Lake Michigan, the development occupies one of the city’s most exposed wind environments. Engineers from Skidmore, Owings & Merrill (SOM) refined the towers’ geometry through extensive wind tunnel testing, focusing particularly on the upper sections where wind forces are strongest. The stepped massing and cascading terraces on the eastern façades help disrupt wind patterns and reduce façade pressures, while also creating outdoor spaces for residents.

Rather than relying on a tuned mass damper, which is commonly used in tall buildings to counteract sway, the project uses a continuous belt-and-outrigger system integrated into the structure. Reinforced concrete walls extend from the building’s central core to the perimeter structure, increasing stiffness and improving lateral resistance. A primary belt wall at Level 44 is one of the project’s most complex structural elements, requiring approximately 400 cubic yards of concrete, 150,000 pounds of reinforcing steel, 12,000 square feet of formwork, and 24 openings for future curtain wall installation.

The project also demonstrates how modern engineering can adapt existing infrastructure instead of starting entirely from scratch. Elements of the abandoned Chicago Spire foundation system were reused, including twenty 10-foot-diameter rock caissons already installed at the site. Engineers aligned the new tower core over these existing foundations, reducing both cost and environmental impact. Before new construction could begin, crews had to remove more than 20 million gallons of accumulated water from the long-abandoned excavation site.

Digital construction technologies have played a major role throughout execution. BIM and virtual design coordination were used to manage dense reinforcement layouts, embedded systems and façade integration. Drone scanning was used before concrete pours to compare slab conditions with the digital model, helping crews identify deviations before concrete placement and reduce the risk of rework on the constrained urban site.

Construction logistics remain complex because the project is bordered by water, major roadways and nearby residential buildings. Wind conditions continue to influence sequencing and safety planning, with certain operations intentionally delayed until areas are enclosed behind curtain walls. The project team reported more than 1.5 million worker hours with fewer than 10 incidents, reflecting the emphasis placed on planning and coordination.

Once complete, 400 Lake Shore Drive will add two major residential towers to Chicago’s lakefront and serve as an example of how architectural form, structural engineering, digital construction and foundation reuse can be integrated in modern high-rise development.
