Colne Valley Viaduct, Britain’s longest rail bridge. Source: HS2
In a major engineering achievement, the UK’s High Speed 2 (HS2) project has set a new record with the completion of the Colne Valley Viaduct, now Britain’s longest rail bridge. Spanning 3.4 kilometers (2.1 miles), this gently-curved structure replaces the Tay Bridge, which held the title for 137 years. The viaduct is designed to carry high-speed trains at up to 320 km/h (200 mph) between London and Birmingham.
Engineering Excellence in the Colne Valley Viaduct
The construction of the Colne Valley Viaduct is a prime example of modern engineering. Managed by the main works contractor, a joint venture team, the process involved lowering 1,000 uniquely-shaped pre-cast deck segments into place using an innovative balanced-cantilever method. Supported by 56 piers, the segments were manufactured on-site to create a smooth curve, allowing the viaduct to stretch 10 meters above land and water across the Colne Valley. This complex project required a highly-skilled team and a massive launching girder to ensure precision.

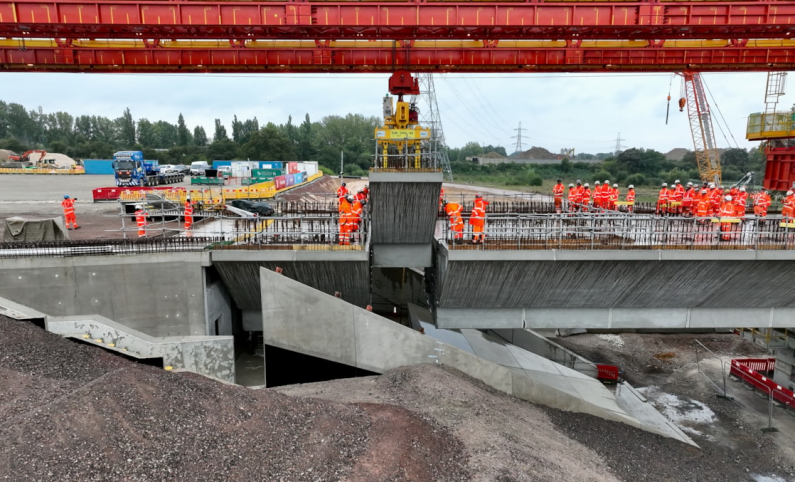

Final deck segment of Colne Valley viaduct installed. Source: HS2
What's next?
Upon completion of the civil engineering phase, the project will transition to rail systems installation. As part of HS2's 'green corridor' initiative, the area surrounding the viaduct will be transformed into chalk grassland and woodland, contributing to environmental sustainability. The HS2 project will significantly reduce travel times between London and Birmingham and open up more capacity on the existing rail network for local and freight services.
HS2 continues to make progress across the country, including at major viaduct projects in Northamptonshire and the West Midlands. With more than 30,000 people employed, HS2 is well on its way to reshaping the future of UK rail infrastructure.
The video showcases the pre-cast deck segments set into place using an innovative balanced-cantilever method.
